Full catalog (2014) for Webgate premium HD-CCTV solutions.

File size: 11MB

4ch hybrid CCTV DVR, supporting:

Digital HD: HD-SDI,EX-SDI

Analog HD: AHD 2.0

Analog SD: 960H

IP: ONVIF & WESP protocol

Supports 30fps/ ch full-frame recording
Max. 100/120fps record & playback at Full-HD 1080p res.
Over 1200TVL at live/ playback
Dual Codec & Multi Stream
Full-HD 1920x1080 HDMI output
Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
PC playback of removed HDD

Bundled free CMS program
Remote view with Chrome, Firefox, Safari and on iPhone/ Android

4ch HD-SDI broadcast quality DVR with all the features of HSC420F-D plus the additional features below:

Power over coaxial cable (PoC) and Control over Coaxial (CoC) to supply power to all 4 cameras and control the cameras- saves additional cabling cost for power cables.

8ch HD-SDI broadcast quality

Video input:

Digital HD: HD-SDI, EX-SDI
Analog HD: 960H,

Analog SD: 960H, 480i, 576i
Display/ recording resolution:
Max 200/ 240fps @ 30fps per channel
1920x1080, 1280x720 , 960x576(480)
Playback speed: Max 200/240fps
Video output: HDMI, VGA, BNC
2 hard disk slots
Built-in DoubleReach support
Dual Codec & Multi Stream
Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
PC playback of removed HDD

Bundled CMS program
Remote view with Chrome, Firefox, Safari and on iPhone/ Android

8ch HD-SDI broadcast quality

Video input:

Digital HD: HD-SDI, EX-SDI, 1080p, 720p
Analog HD: 960H, SD: 960H, 480i, 576i
Display/ recording resolution:
Max 200/ 240fps @ 30fps per channel
1920x1080, 1280x720 , 960x576(480)
Playback speed: Max 200/240fps
Video output: HDMI, VGA, BNC
2 hard disk slots
Built-in DoubleReach support
Dual Codec & Multi Stream
Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
PC playback of removed HDD

Bundled CMS program
Remote view with Chrome, Firefox, Safari and on iPhone/ Android

8ch HD-SDI broadcast quality
Max. 120/100fps record & playback at Full-HD 1080p res.
Over 1200TVL at live/ playback
Dual Codec & Multi Stream
Full-HD 1920x1080 HDMI output
Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
PC playback of removed HDD

Bundled CMS program
Remote view with Chrome, Firefox, Safari and on iPhone/ Android

16ch HD-SDI broadcast quality
- 120/100fps recording at 1080p
- Dual Codec & Multi Stream
- Full-HD 1920x1080 HDMI output
- Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
- PC playback of removed HDD

- Bundled CMS program
- Remote view with Chrome, Firefox, Safari and on iPhone/ Android
2 internal SATA hdd bays, 1 external eSATA

16ch Full HD broadcast quality & 30fps/ channel full-frame recording DVR supporting PoC/ CoC, DoubleReach, RAID

- 480/400fps record / playback at 1080p

- Over 1200TVL at live/ playback

- Dual Codec & Multi Stream
- HDMI Full HD 1920x1080 output
- Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
- PC playback of removed HDD

- Bundled CMS program
- Remote view with Chrome, Firefox, Safari, iPhone, Android

16ch Full HD broadcast quality & 30fps/ channel full-frame recording DVR with PoC and DoubleReach

- Supported video inputs:
Digital HD: HD-SDI, EX-SDI
Analog HD: 960H,

Analog SD: 960H, 480i, 576i
- Recording resolution:
Max 400/ 480fps @ 30fps per channel
1920x1080,1280x720, 720x576(480), 960x576(480)
- 5 hard disk slots

- Over 1200TVL at live/ playback

- Dual Codec & Multi Stream
- HDMI Full HD 1920x1080 output
- Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
- PC playback of removed HDD

- Bundled CMS program
- Remote view with Chrome, Firefox, Safari, iPhone, Android

16ch Full HD broadcast quality & 30fps/ channel full-frame recording DVR with PoC and DoubleReach

- Supported video inputs:
Digital HD: HD-SDI, EX-SDI
Analog HD: 960H,

Analog SD: 960H, 480i, 576i
- Recording resolution:
Max 400/ 480fps @ 30fps per channel
1920x1080,1280x720, 720x576(480), 960x576(480)
- 5 hard disk slots

- Over 1200TVL at live/ playback

- Dual Codec & Multi Stream
- HDMI Full HD 1920x1080 output
- Date/Time, Calendar, Event, Thumbnail, Smart, Text Search
- PC playback of removed HDD

- Bundled CMS program
- Remote view with Chrome, Firefox, Safari, iPhone, Android

Version EN2.5 (25 Aug 2015)

12 page brochure for Webgate hybrid DVRs and EX-SDI cameras. Ideal solution to incrementally upgrade an existing analog system

Full catalog (2014) for Webgate premium HD-CCTV solutions.

File size: 11MB

Condensed brochure (2014)

1/3“, 2.1M CMOS progressive image sensor 1200TVL box camera

HD-SDI 1080p25/30 & 720p25/30 video output

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Superior performance under low light environment
Camera power supply through Coaxial cable (PoC)
OSD control, Firmware upgrade through Coaxial (CoC)

1/3" 2.1M CMOS progressive image sensor 1200TVL indoor IR dome camera with auto focus, PoC/ CoC/ DoubleReach

IR LED: 24pcs, up to 30m

DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects

1/3", 2.1M CMOS progressive image sensor 1200TVL outdoor bullet IR camera with auto focus
IR LED: 18 pcs, up to 25m

HD-SDI 1080p25/30 & 720p25/30 Video Output
DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Power over coaxial/ control over coaxial features

One-Push Auto Focus, Zoom/Focus Control

Dust-proof, waterproof IP66 rated

1/3", 2.1M CMOS progressive image sensor 1200TVL outdoor bullet IR camera with auto focus
IR LED: 48 pcs, up to 48m

HD-SDI 1080p25/30 & 720p25/30 Video Output
DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Power over coaxial/ control over coaxial features

One-Push Auto Focus, Zoom/Focus Control

Dust-proof, waterproof IP66 rated

Full-HD camera supporting flame detection function
Quick & accurate detection by flame’s wavelength detection
Minimize false-alarm by using 2 different sensors

1/3" 2.1M CMOS progressive image sensor 1200TVL indoor IR dome camera

IR LED: 24pcs, up to 30m

DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

HD-SDI 1080p25/30 & 720p25/30 Video Output

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Superior performance under low light environment

1/3" 2.1M CMOS progressive image sensor 1200TVL indoor IR dome camera with auto focus

IR LED: 24pcs, up to 30m

DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

HD-SDI 1080p25/30 & 720p25/30 Video Output

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Superior performance under low light environment
One-Push Auto Focus, Zoom/Focus Control

1/3", 2.1M CMOS progressive image sensor 1200TVL outdoor bullet IR camera with auto focus
IR LED: 18 pcs, up to 25m

HD-SDI 1080p25/30 & 720p25/30 Video Output
DC Iris, 2.8mm~11mm, F1.4, IR Corrective Megapixel Lens

True Day&Night with IR cut filter
Anti-Motion Blur for fast objects
Superior performance under low light environment

Dust-proof, waterproof IP66 rated

1/2.8" 2M CMOS progressive image sensor indoor/ outdoor pan/tilt/ zoom camera

20x optical / 12x digital zoom

HD-SDI 1080p25/30 & 720p25/30 Video Output

True Day&Night with IR cut filter

Dust-proof, waterproof IP66 rated for (C1080PT-Z20 outdoor model)

• 1/2.8” PS-Sony STARVIS CMOS
• Full HD 2Megapixel (1080p)

• POC (Transfer power of the camera via Coaxial): Max 150m
• HD-SDI(150m/5CHFBT) or EX-SDI(300m/5CHFBT)
• Low up to 0.001Lux, LED On: 0Lux
• Day/Night with ICR
• 3.6mm Fixed Mega Pixel Lens
• Built-In High Effective IR 24 EA (Visible Distance: 15M)

• 1/2.8” PS-Sony STARVIS CMOS
• Full HD 2Megapixel (1080p) Display

• POC (Transfer power of the camera via Coaxial): Max. 150m
• HD-SDI(150m/5CHFBT) or EX-SDI(300m/5CHFBT)
• Low up to 0.001Lux¸ LED On:0Lux, Day/Night with ICR
• Motion Detection (4), Privacy Masking (16), Digital Zoom (16x)
• 3D-DNR (Digital Noise Reduction), Defog, OSD
• 3.6mm Fixed Mega Pixel Lens
• Built-In High Effective IR 24 EA (Visible Distance: 15M)
• 3Axis, Indoor Type

• 1/2.8 PS-Sony Exmor CMOS
• Full HD 2Megapixel (1080p)
• POC (Transfer power of the camera via Coaxial): Max. 100m
• HD-SDI(150m/5CHFBT) or EX-SDI(300m/5CHFBT)
• Low up to 0.001Lux LED On:0Lux, Day/Night with ICR
• 2.8~12mm Megapixel DC Auto Iris Lens
• Built-In High Effective IR 36 EA (Visible Distance: 30M)
• Weather-proof (IP66)
• Anti-moisture window glass

Full HD 1920x1080P @ 50/ 60fps (3G-SDI) Colour box camera
1/2.8" Sony 3 megapixel progressive exmor CMOS sensor
Colour: 0.1 lux, B/W: 0.01 lux @F1.2
Simultaneous video output: SDI/ HDMI / Composite BNC

Full-HD Fisheye Panoramic Camera

HD-CCTV 5 megapixel camera with SDI, HDMI and 4 CVBS output
360° and 180° panorama view
Virtual PTZ function

Autopan function

Multiple screen display

Built-in microphone

20x optical zoom
Full HD: 1080p video resolution with HD-SDI output
True PTZ: Pan: 360° / Tile: -10°~90° with auto flip
IP66 water proof
Level 2 lightning protection
3KV surge protection

10X optical zoom
Full HD: 1080p video resolution with HD-SDI output

SONY 1/2.8” Exmor CMOS Image Sensor
True PTZ: Pan: 360° / Tilt: -10°~90° with auto flip

10X optical zoom
Full HD: 1080p video resolution with HD-SDI output

SONY 1/2.8” Exmor CMOS Image Sensor
True PTZ: Pan: 360° / Tilt: -10°~90° with auto flip

Ceiling-mounted bracket is different from photo, for cam illustration only.

Hybrid analog/ IP DVR

8 channels BNC input (max)

9 channels IP input (max)

(mix of the above, max 9 ch)

H.264 video compression
Recording rate up to 240 PPS @ D1 (Analog Camera)
Real-time display & playback.
Support each channel backup
Supports iPhone / Android

Hybrid analog/ IP DVR

8 channels BNC input (max)

16 channels IP input (max)

(mix of the above, max 16 ch)

H.264 video compression
Recording rate up to 120 FPS @ D1 (Analog Camera)
Real-time Display & Playback.
Support each channel backup
Supports iPhone / Android

Hybrid analog/ IP DVR

16-channels analog cameras

16-channels IP cameras

Re-use existing analog cameras while changing to new IP cams

Built-in H.264 . M-JPEG codec

3G phone remote viewer (WinOS / iPhone / Android / Symbian)
Windows embedded OS
480pps display & playback @ 720x480 (16-screen display)

Remote viewing & playback

HD weatherproof IR bullet cam
1.3MP 720P IP66 rated water, dust resistant
1/3 type 1.3MP MOS sensor
H.264, MJPEG dual-stream encoding
30fps@1.3M (1280x960)
30fps@720p (1280x720)
Max IR LED distance 30m
Power over ethernet

HD weatherproof IR mini dome
1.3MP 720P IP66 rated water, dust resistant
1/3 type 1.3MP MOS sensor
H.264, MJPEG dual-stream encoding
30fps@1.3M (1280x960)
30fps@720p (1280x720)
Max IR LED distance 20m
Power over ethernet

Day / night 720p HD (1280x960) transmission up to 30fps
1.3 Megapixel high sensitivity newly developed MOS Sensor
H.264 and JPEG compression
Zoom: 2,4x dig, 2x extra (VGA)
Digital noise reduction
PoE ready (PoE adaptor not incl)

ONVIF compliant model

Day / night 720p HD (1280x960) transmission up to 30fps
Mega SuperDynamic - 128x wider dynamic range compared to conventional cameras
1.3 Megapixel high sensitivity newly developed MOS Sensor
H.264 and JPEG compression
Zoom (digital): 8x, 2x extra (VGA)
PoE ready (PoE adaptor not incl)

Day / night 720p HD (1280x960) transmission up to 30fps
Mega SuperDynamic - 128x wider dynamic range compared to conventional cameras
1.3 Megapixel high sensitivity newly developed MOS Sensor
H.264 and JPEG compression
Zoom (digital): 8x, 2x extra (VGA)
PoE ready (PoE adaptor not incl)

IP55 rated water & dust resistant

Day / night 720p HD (1280x960) transmission up to 30fps
1.3 Megapixel high sensitivity newly developed MOS Sensor
H.264 and JPEG compression
Zoom: 2,4x dig, 2x extra (VGA)
Digital noise reduction
Face detection
PoE ready (PoE adaptor not incl)
Low profile design for discrete installation

ONVIF compliant model

Day / night HD 1080p camera
Up to 3 megapixel jpeg stream
1/3 type interline transfer CCD
H.264 / MPEG-4 / JPEG compres.
Zoom: 2,4x dig, 2x extra (VGA)
Mega super dynamic technology delivers clear face images and better dynamic ranges
IP66 weatherproof, vandal resistant
Bi-directional audio
Face detection, auto back focus
PoE ready (PoE adaptor not incl)

ONVIF compliant model

Day / night 720p HD (1280x960) transmission up to 30fps
1.3 Megapixel high sensitivity newly developed MOS Sensor
Pan / tilt / zoom
18x optical, 12x dig zoom
H.264 and JPEG compression
Mega super dynamic technology delivers clear face images and better dynamic ranges
Digital noise reduction
Face detection, bi-directional audio
PoE ready (PoE adaptor not incl)
ONVIF compliant model

Day / night 720p HD (1280x960) transmission up to 30fps
1.3 Megapixel high sensitivity Infra-red function (WV-SW316L)

newly developed MOS Sensor
H.264 and JPEG compression
Improved wide dynamic range technologies providing clearer face image
Full duplex bi-directional audio
IP66 water and dust resistant
3.1 ~ 10mm, 3.2x vari-focal auto iris lens
12V DC power source

ONVIF compliant model

360 degree network camera

Wide variety of transmission modes: panorama, double panorama, quad PTZ, Single PTZ, Quad streams

1080p Full HD up to 30fps

Smooth PTZ operation witout mechanical action

Built-in distortion correction

Smartphone monitoring

Super Dynamic & ABS technologies

Full duplex bi-directional audio SDXC/ SDHC/ SD card slot for manual recording

1, 2, 4x dig zoom
H.264 transmission
PoE ready (PoE adaptor not incl)

Wired connection (RJ-45)
10x digital zoom
Remote access (web browser)
Remote zoom
15fps, 640 x 480 max resolution

4x digital zoom
H.264 and JPEG compression
Up to 30fps at 640 x 480
View image in low light with day & night function at 0.9 lx( colour), 0.6lx (B/W) at F2.8
Wired connection
Motion detection function
Smartphone monitoring (JPEG)

Wired ethernet with PoE
4.6x zoom (2.3x optical, 2x digital)
Remote pan/ tilt/ zoom
30fps, 640 x 480 max resolution

Wired ethernet with PoE
Suitable for outdoor use

4.6x zoom (2.3x op., 2x dig)
Remote pan/ tilt/ zoom
30fps, 640 x 480 max resolution

IP Camera recording/ viewing software

Power line communication

(Home plug, ethernet adaptor)
Allows you to connect to your house network using your home power line

H.264 full HD 1080p

wired IP camera

H.264 full HD 1080p

indoor wired IP camera

Supports 2-way audio (built-in mic. Speakers not included)

H.264 full HD 1080p

wired IP vandal-proof IR camera

Vari-focal 3-9mm F1.8 lens

18 LEDs, 15 meters IR range

Supports 2-way audio (input: audio input, output: line output)

H.264 full HD 1080p indoor / outdoor wired IP infra-red camera

vari-focal 3.6-16mm F1.2 lens

Supports 2-way audio (external mic/ speakers not included)

IP66 weatherproof standard

720P HD indoor IP camera

Vandal-proof

4.2mm F1.6

H.264, MPEG4, MJPEG

iPhone , android support

H.264

VGA resolution IP Bullet Camera Indoor / Outdoor

H.264

2 Megapixels IP Bullet Camera

Indoor / Outdoor

H.264

2 Megapixels IP Camera

Indoor / Outdoor

H.264

2 Megapixels IP Dome Camera Indoor / Outdoor

We carry all Sony IP camera models. For the full list of models, please refer to this document.

4-channel analog / AHD recorder

Up to 4-ch real-time recording, playback and live view

H.264 video compression
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p AHD and 960H analog video input
Supports up to 1 x 6TB hard disk

4-channel analog / HDCVI recorder

Up to 4-ch real-time recording, playback and live view
H.264 video compression
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p HDCVI and analog video input
Supports up to 1 x 6TB hard disk

8-channel analog / AHD recorder
Up to 8-ch real-time recording, playback and live view

H.264 video compression
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p AHD and 960H analog video input
Supports up to 1 x 6TB hard disk

8-channel analog / HDCVI recorder

Up to 8-ch real-time recording, playback and live view
H.264 video compression
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p HDCVI and analog video input
Supports up to 1 x 6TB hard disk

16-channel analog / AHD recorder
Up to 16-ch real-time recording, playback and live view

H.264 video compression
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p AHD and 960H analog video input
Supports up to 2 x 6TB hard disk

16-channel analog / HDCVI recorder
Up to 16-ch real-time live view
H.264 video compression
1/4/9/16 ch synchronous real time playback
HDMI & VGA output
iPhone, iPad, Android support
Supports 720/1080p HDCVI and analog video input
Supports up to 2 x 6TB hard disk

Full-HD Analog vari-focal IR indoor dome camera
1/2.8 inch Sony 1080P sensor
1920x1080p @ 25fps
2.8-12mm vari-focal lens
24 IR LEDs
Bracket with cable management
Video output: AHD / CVBS 960H

Full-HD Analog fixed-focal IR indoor dome camera
1/2.8 inch Sony 1080P sensor
1920x1080p @ 25fps
3.6mm fixed lens
24 IR LEDs
Bracket with cable management
Video output: AHD / CVBS 960H

HD Analog day/night fixed IR indoor dome camera
720p @ 25fps

3.6mm fixed lens

Max IR distance 20m

External case: plastic (indoor use)

Video output: 1ch BNC HD-CVI

Full-HD Analog day/night vari-focal IR outdoor bullet camera
1/2.8 inch Sony 1080P sensor
1920x1080p @ 25fps
2.8-12mm vari-focal lens
42 IR LEDs
Bracket with cable management
Video output: AHD / CVBS 960H

Full-HD Analog day/night fixed-focal IR outdoor bullet camera
1/2.8 inch Sony 1080P sensor
1920x1080p @ 25fps
3.6mm fixed lens (5 Megapixels)
36 IR LEDs
Bracket with cable management
Video output: AHD / CVBS 960H

HD Analog day/night vari-focal IR outdoor dome camera
720p @ 25fps
2.7-12mm manual/fixed iris lens
Max IR distance 30m

External case: metal

IP66 rated for outdoor use

Video output: 1ch BNC HD-CVI

HD Analog day/night fixed-focal IR outdoor dome camera
720p @ 25fps
3.6mm fixed lens
Max IR distance 30m

External case: metal

IP66 rated for outdoor use

Video output: 1ch BNC HD-CVI

HD Analog day/night vari-focal IR outdoor box camera

1/2.9 inch 1 megapixel sensor
1280x720 @ 25fps
2.7-12mm manual/ fixed iris lens
Max IR distance 30m
External case: metal
IP66 rated for outdoor use

Video output: 1ch BNC HD-CVI

HD Analog day/night fixed-focal IR outdoor box camera
1/2.9 inch 1 megapixel sensor
1280x720 @ 25fps
Focal length: 3.6mm fixed lens
Max IR distance 20m
External case: metal
IP66 rated for outdoor use
Video output: 1ch BNC HD-CVI

4 channel recorder
H.264 video compression
dual display: 1 VGA, 1 x spot out
4 channel audio recording
Recording res: D1, half D1, CIF
Recording frame rate: 100fps (CIF, half D1, D1)
Video motion detection
Built-in PTZ camera control
JPEG/ avi/ exclusive video format
Network monitoring (web, mobile viewer, UMS software)

4 channels input

H.264 960H real time DVR

HDMI/ VGA output

Remote monitoring on iPhone, android, web browsers

8 channels input

H.264 D1 recording up to 50pps

Supports single channel backup

iPhone, blackberry, windows mobile, java support

8 channel recorder
H.264 video compression
dual display: 1 VGA, 2 x spot out
4 channel audio recording
Recording res: D1, half D1, CIF
Frame rate: 200fps (CIF, half D1), 100fps (D1)
Video motion detection
Built-in PTZ camera control
JPEG/ avi/ exclusive video format
Network monitoring (web, mobile viewer, UMS software)

Hybrid analog/ IP DVR

8 channels BNC input (max)

9 channels IP input (max)

(mix of the above, max 9 ch)

H.264 video compression
Recording rate up to 240 PPS @ D1 (Analog Camera)
Real-time display & playback.
Support each channel backup
Supports iPhone / Android

Hybrid analog/ IP DVR

8 channels BNC input (max)

16 channels IP input (max)

(mix of the above, max 16 ch)

H.264 video compression
Recording rate up to 120 FPS @ D1 (Analog Camera)
Real-time Display & Playback.
Support each channel backup
Supports iPhone / Android

4 or 8 channels input

MPEG4, H.264, MJPEG, JPEG

Records at 160fps (320 x 240)

Live display up to 200fps

Remote view using IE browser

16 channels input

H.264 D1 real time DVR

HDMI/ VGA output

Remote monitoring on iPhone, android, web browsers

8 channel recorder
H.264 video compression
dual display: 1 VGA, 2 x spot out
4 channel audio recording
Recording res: D1, half D1, CIF
Frame rate: 200fps (CIF, half D1), 100fps (D1)
Video motion detection
Built-in PTZ camera control
JPEG/ avi/ exclusive video format
Network monitoring (web, mobile viewer, UMS software)

Hybrid analog/ IP DVR

16-channels analog cameras

16-channels IP cameras

Re-use existing analog cameras while changing to new IP cams

Built-in H.264 . M-JPEG codec

3G phone remote viewer (WinOS / iPhone / Android / Symbian)
Windows embedded OS
480pps display & playback @ 720x480 (16-screen display)

Remote viewing & playback

Option of 8 or 16 channels
WinXP embedded OS
Max 200fps display / record

Remote viewing & playback
Automatic failure recovery

Record, playback, backup, search
Built-in web server and firewall
Automatic failure recovery
Real-time live monitoring (30fps)
Real-time video recording (30fps)

Day & night camera with digital wide dynamic range
680 TVL (colour), 700 TVL (B&W)
2D Noise reduction
Ideal for backlight environments

Day & night camera

420 TV Lines

Day & night camera

700TV Lines outdoor high res IR camera
25m IR range
Uniform IR light distribition for optimum viewing angle

Double glass reduces internal reflection

700TV Lines indoor high res IR camera
15m IR range
Uniform IR light distribition for optimum viewing angle

Lens shading compensation

1/3" super hi-res indoor / outdoor IR camera
Sony HQ1 / 540TVL
24 IR LEDs + 6pcs high power reflection LEDs
User friendly DC level & high power IR LEDs adjustments
3-axis adustable & cable management

Indoor/ Outdoor IR Camera

1/3" CCD sensor

420 TV Lines

45 LEDs

IR distance: 15m

WV-CF304L / WV-CF314L

Day/ night fixed dome camera with IR LED
650TV lines
0.08lx (colour), 0lx (B/W)
IR cut filter, IR LED (20m)
2.8-10mm 3.6x varifocal auto iris lens
2x digital zoom

WV-CW304L / 314L / 324L

Weather resistant day/ night fixed camera with IR LED
650TV lines
0.08lx (colour), 0lx (B/W)
IR cut filter, IR LED (20m)
2.8-10mm 3.6x varifocal auto iris lens
2x digital zoom
IP66 rated water and dust resistant

X-Plus Day/ Night Varifocal IR Bullet Camera with 800 TV lines

1/4 inch CMOS sensor
Day/ night function:
0.01 lux @ F1.2 (colour)
0 lux (B/W, IR LED on)
2.8-12mm varifocal lens
57 degrees horizontal, 41 deg vertical coverage angle
IP66 water and dust resistant

X-Plus Day/ Night Varifocal IR Dome Camera with 800TV lines
1/4 inch CMOS sensor
Day/ night function:
0.01 lux @ F1.2 (colour)
0 lux (B/W, IR LED on)
2.8-12mm varifocal lens
57 degrees horizontal, 41 deg vertical coverage angle
IP66 water and dust resistant

Original Sony (made in Japan) vandal proof dome camera (black and white)

Indoor Dome Camera

Outdoor Dome Camera

Indoor Dome Camera

Outdoor Infrared Dome Camera

We carry all Sony analog camera models. For the full list of models, please refer to this document.

Outdoor weatherproof spy camera

Indoor spy camera

Vehicle DVR

Embedded RTOS
4 ch, 120 pps recording
Anti-resonance/ vibration / shock
Weatherproof & dustproof (IP54)
Real-time GPS location tracking

Download full catalog (17MB)

Visit Kowa's CCTV lenses website

For use with megapixel cams

1/2" format

12 ~ 240mm

Max aperture ratio 1:1.6 ~ 2.8

Iris range F1.6 - F720

RS232C, Preset, Auto-iris with manual override

Fog reduction

Auto focus

1/2" format

12~660mm (30.5~1680mm)

Max aperture ratio: 1:4.0 (f=12mm)~18.2 (f=1680mm)

Built-in 2.5x extender

Fog reduction, heat haze reduction, image stabiliser

Auto focus

RS232Cm preset, auto-iris with manual override

For full HD cameras

1/2" format

8.0 ~ 40mm

Max aperture ratio 1:1.4

Iris range F1.4 - F250

CS mount

Compatible with 3 megapixel (full HD) cameras

Click-stop focus

1.3 megapixel lens
2.6-8mm F1.3 vari-focal plus
Quick, efficient, stress-free installation

High-resolution images
No defocusing when zooming
Click-stop focus
HD, mega-pixel compatible
Reduction of ghost and flare of the image

2.9~8.5mm F1.2

12x zoom

Focal length: 5.0 - 60mm

Max aperture: 1: 1.3

View angle: 54.2 - 4.6 deg

1/3" 5-50mm day & night lens

Indoor infrared illuminator

360 deg. viewing angle (ceiling mounted) / 180 degrees viewing angle (wall mounted)
Area range up to 200M(square)
Automatic switch on/ off

850nm super wide angle LEDs x 90 pcs

Outdoor infrared illuminator

Metal rectangular housing
850nm infrared LEDs x 136 pcs.
Dust and waterproof (IP66)

Max. Load: 10kg
Material / Color: Metal / Beige
Swivel / Tilt: 360 / 90 degree
Size: 350x180mm (hxw)

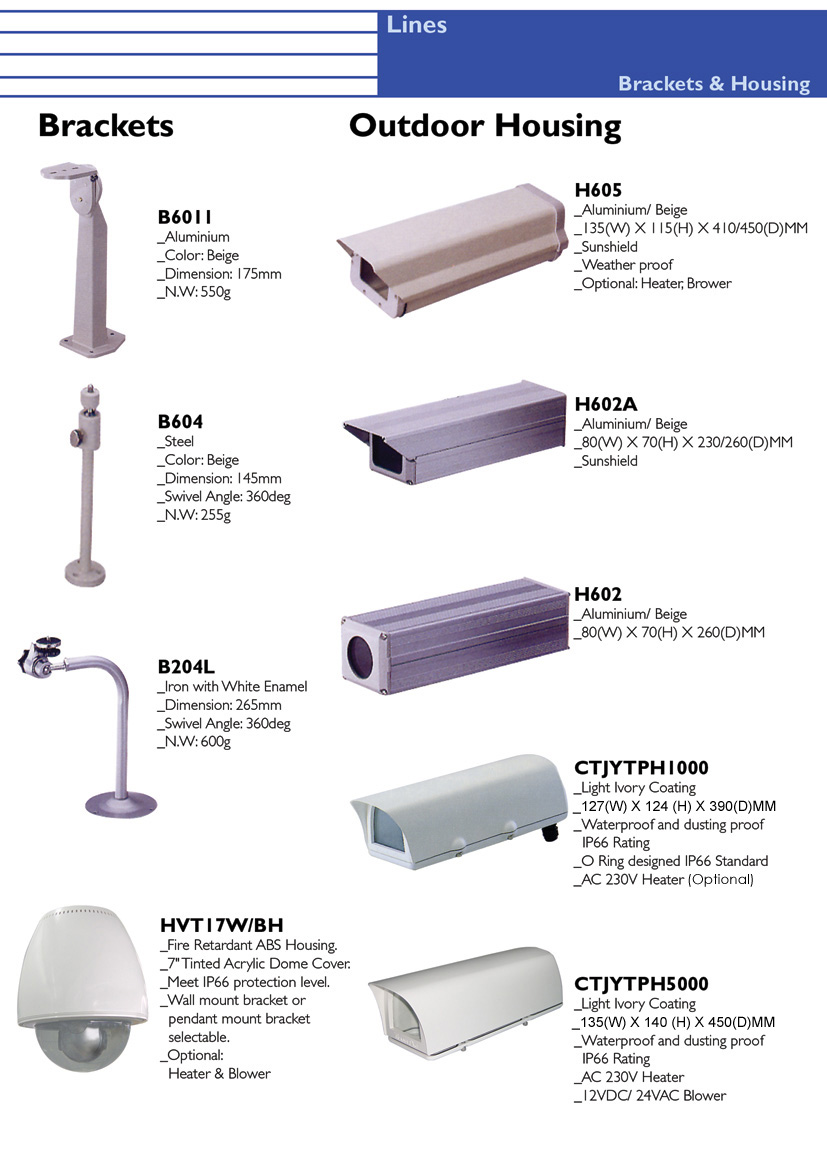

Light-ivory coating
127(W) x 124(H) x 390(D) mm
Waterproof and dust proof (IP66)
AC 230 heater (optional)

Light-ivory coating
135(W) x 140(H) x 450(D) mm
Waterproof and dust proof (IP66)
AC 230 heater
12v DC / 24V AC Blower

For IP cameras

Indoor use

PE insulation

For IP cameras

Indoor use

PE insulation

For IP cameras

Outdoor use

PE insulation

Audio pick-up box

Full-size PTZ controller

PTZ controller

Indoor pan / tilt scanner

Outdoor pan / tilt scanner

1 ch / 5 ch pan controller

1ch pan / tilt / zoomcontroller

Active series

Passive series

4 inputs, 8 outputs

15.6" widescreen LED HDTV
Attractive super-slim profile
HDMI and VGA interface
Wall-mountable

18.5" widescreen LED HDTV

Attractive super-slim profile
HDMI and VGA interface
Wall-mountable

4-port gigabit PoE hub

For IP surveillance

Supports Telexper cameras

12-port gigabit PoE hub

For IP surveillance

Supports Telexper cameras
