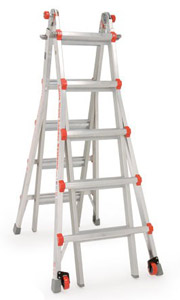

Aluminium Classic Type 1A



Little Giant Select Step

The heavy duty rated, (Type IA - 300 lbs.) combines multiple ladders into one convenient ladder system. It can be configured to be used in five different ways: (1) as an A-frame ladder, (2) in the 90 degrees position for walls and tight corners, (3) on stairs and uneven surfaces as both sides telescope independently, (4) extension (straight) ladder for extra reach and (5) taken apart to form two trestles for scaffolding - Little Giant work plank sold separately. Hanging pictures or changing that impossible light bulb above the stairwell will never be easier.



With its dual-layer design, you can extend the ladder height by 1-foot increments to the ideal work height of your task. It can be stored and transported at a compact height while giving you the flexibility to reach a much higher area when needed. Made of heavy-wall aircraft-grade aluminium, the Aluminium Classic Type 1A is four to five times stronger than traditional ladders



The Little Giant Aluminium Classic 1A complies with all applicable OSHA & ANSI A 14.2 standards.





Manual     Video



Features

90 degrees ladder

Use the 90 degrees position to work close to walls and tight corners

Safe to use on stairs and uneven surfaces

Triple locking hinges Patented triple-locking hinges ensures ladder is securely locked in position during use   Wide flared legs Wide flared legs for added stability

Select Step Tip & Glide Wheels Tip & Glide wheels easily moves the ladder from job to job (except model 13)



Image gallery


Viewing the product slideshow requires JavaScript and the Flash Player. Get Flash.
The Aluminium Classic Type 1A is available in four models:

Model

13

17

22

26

Weight capacity

136kg
(300 lbs)

136kg
(300 lbs)

136kg
(300 lbs)

136kg
(300 lbs)

Ladder weight

11.79kg
(26 lbs)

15.9kg
(35 lbs)

19.1kg
(42 lbs)

24.5kg
(54 lbs)

Min extension height

2.1m
(7')

2.7m
(9')

3.4m
(11')

4m
(13')

Max extension height

3.4m
(11')

4.6m
(15')

5.8m
(19')

7m
(23')

Min A-frame height

0.91m
(3')

1.22m
(4')

1.52m
(5')

1.83m
(6')

Max. A-frame height

1.52m
(5')

2.1m
(7')

2.7m
(9')

3.4m
(11')

Storage height

1.09m
(3'7")

1.4m
(4'7")

1.7m
(5'7")

2m
(6'7")

Scaffolding height

0.91m
(3')

1.22m
(4')

1.52m
(5')

1.83m
(6')

Width at base

0.6m
(24")

0.63m
(24.5")

0.7m
(27.5")

0.79m
(31")
